| Art | AL-301 (A) & AL-301 (B) |
|---|---|
| Direction | wo Ways Acrylic Prismatic Reflector |
| Color | Red, White or Yellow |
Delineators
Delineators are ideally suitable for dangerous curves, central verges, Islands etc. High quality round reflectors fixed on both sides make it highly visible in poor light condition. They can be installed horizontally as well as vertically. Due to specially designed body and reflectors fixation method, their reflectivity and durability remain for a long life.

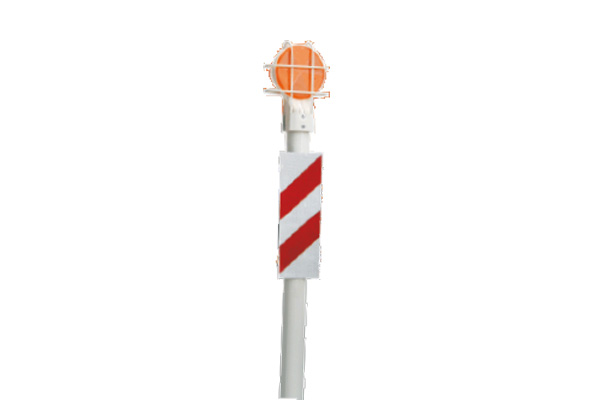

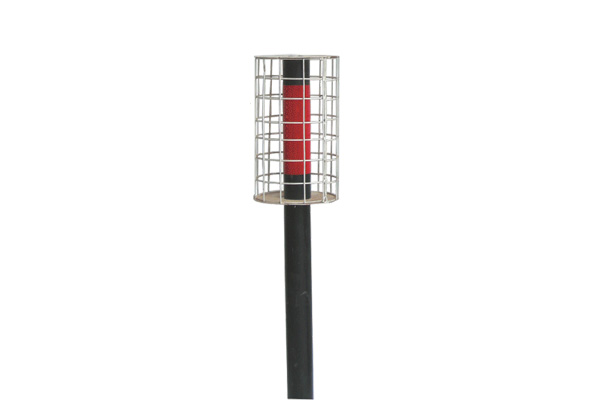

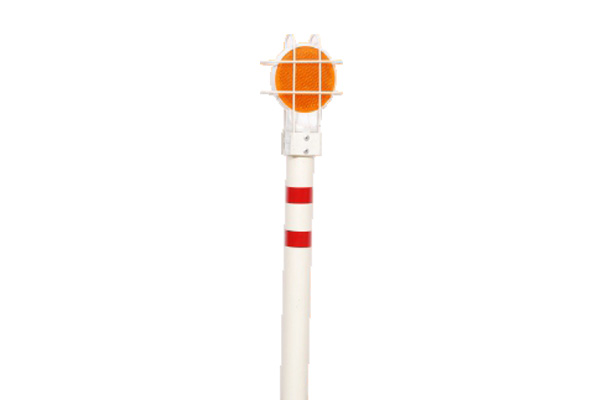

Reflector Delineator
| Art | AL-302 |
|---|---|
| Size of reflective strip | 3 HIP reflective strips 50mm rounded each color |
| Net/Zali | 200mm |
| OD | 48mm |

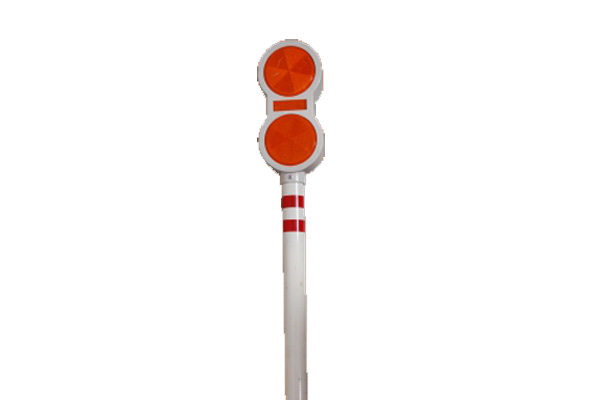

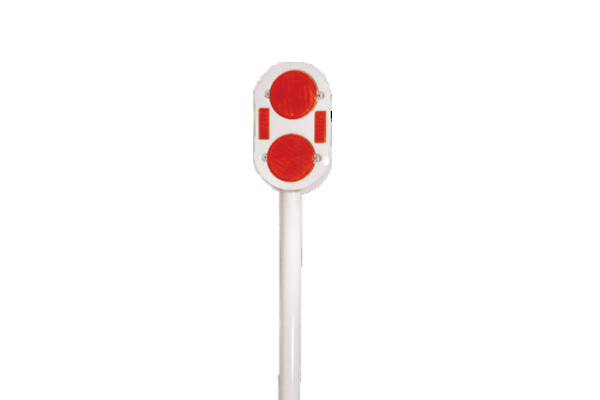

Alcolite Guide Post
| Art | AL-303 (A)/303 (B) |
|---|---|
| Direction | Two Ways reflector Metal Body |
| Color | Orange and white combination |
| Height | 1000mm |
Bollard
| Art | AL-304 |
|---|
The bollard consists of One Plastic Square Plate, one MS Round Plate and one message plate fitted on 1825mm MS Pipe dia 63mm duly powder coated. Plastic plate size 405mm x 405mm is fitted with nine reflectors made of PMMA of 100mm dia, welded ultrasonically on Plastic Plate. MS round plate of 405mm dia, is fitted below the square plate on the MS pipe with the clamps. HIG grade reflective tape in blue color is pasted on the round plate with directional arrow in white color. MS plate of 305mm x75mm is fitted below the round
